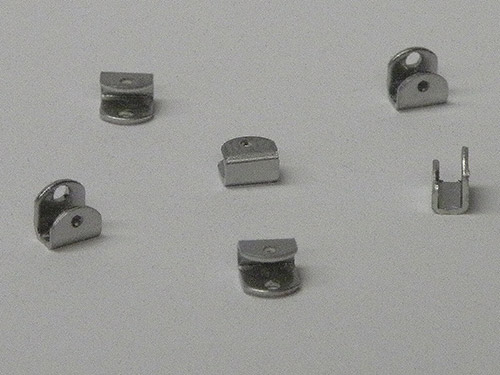

Arcade has been partnering with a client in the motion control/switch industry for over 15 years in the manufacture of stainless steel terminal tabs. These tabs were originally produced in-house but the client transferred this capability to Arcade along with the existing tooling.
Over a three month period the customer moved over 50 individual tools to our facility and we were up and running almost immediately. Our expert progressive die stamping capabilities produce terminal tabs from 302 stainless steel with ΒΌ hardness on our precision 30 ton high speed Minister press. The parts have dimensions of 0.60″ long, 0.35″ wide, and an estimated part weight of 0.002 lb.
Parts are verified to meet standards with quality measures that include dimensional, visual, and gauge inspections. In addition to stainless steel, we also produce stampings from cold rolled steel, hot rolled steel, aluminum, brass, copper, Kovar, silver, galvanized and galvannealed steel.
Arcade produces approximately 10,000 stainless steel terminal tabs annually for this client. To learn more about this project, please see the table below or contact us today.
Highlights of this Progressive Die Stamping of a Stainless Steel Terminal Tab Project
| Product Description | Small stainless stamping used in the switch industry. |
| Equipment Used to Manufacture Part |
|
| Material Used |
|
| In Process Testing / Inspection Performed |
|
| Industry for Use |
|
| Volume |
|
| Delivery Location | Northeast |
| Standards Met |
|
| Product Name | Terminal Tab |
| Specifications | Primary Progressive Die Stamping Capabilities Applied / Processes
|
Product Description
Small stainless stamping used in the switch industry.
Equipment Used to Manufacture Part
- 30 Ton High Speed Minister Press
Material Used
- 302 Stainless Steel; 1/4 Hard
In Process Testing / Inspection Performed
- Dimensional Inspection
- Visual Inspection
- Gauge Inspection
Industry for Use
- Switch
Volume
- 10,000 Annually
Delivery Location
Northeast
Standards Met
- 3D CAD Drawing
- Customer Specifications
Product Name
Terminal Tab
Specifications
Primary Progressive Die Stamping Capabilities Applied / Processes
- Progressive Die Stamping – Customer Supplied Tooling
Estimated Part Weight
- 0.002 lb
Overall Part Length
- 0.35 in
Overall Part Width
- 0.35 in
