Aware of Arcade’s expertise in progressive and compound tooling, a client in the waste collection industry contacted us to re-tool parts of their solar powered rubbish compacting bins. Re-tooling these large sheet metal parts resulted in a considerable cost savings over previously manufactured parts.

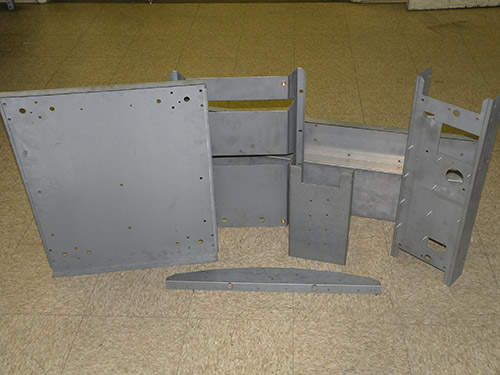

The 18 parts were engineered and fabricated utilizing our progressive die and compound die stamping capabilities. Constructed from galvannealed steel, the parts were produced in a number of shapes and sizes ranging from 0.075″ by 3.00″ wide, with plastic coating, to 25″ by 27″ wide. Parts had thicknesses of 0.035″, 0.048″, 0.060″, 0.075″, and 0.105″ and weights ranging from 0.500 to 15 lbs. They were formed with a combination of progressive and compound die stamping on precision 45 ton, 150 ton and 200 ton presses. Additional secondary services included zinc plating, painting, plastic dip coating, tapping, and light assembly.
In-process dimensional and visual inspections ensured specifications were met. Machined holes, tapped holes, heights, and widths were verified for accuracy.
Additional details on this hard tooling and stamping project can be found in the table below. To learn more, please feel free to contact us.
Highlights of this Progressive and Compound Die Stamping of Large Sheet Metal Parts Project
| Product Description | Large stamped metal parts used in the Waste Collection Products industry. |
| Equipment Used to Manufacture Part |
|
| Material Used |
|
| In Process Testing / Inspection Performed |
|
| Industry for Use |
|
| Volume |
|
| Delivery Location | Northeast and Southeast |
| Standards Met |
|
| Product Name | Large Sheet Metal Parts (Galvannealed Steel) |
| Specifications | Secondary Progressive & Compound Die Stamping Capabilities Applied / Processes
|
