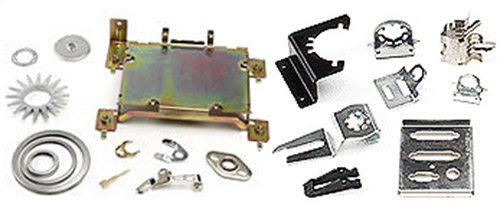

Arcade’s precision metal stamping service combines the experience of our toolmakers with our dedication to quality to produce components that reliably exceed the standards of our customers. Using progressive tooling and compound/secondary tooling to produce miniature/small parts and large sheet metal pieces, we are able to offer quick turnarounds on prototypes and production runs.
Our material list includes galvanized, galvannealed, cold rolled steel, hot rolled steel, stainless steel, aluminum, brass, bronze, copper and silver. Presses have a range of 45 – 200 tons, maximum bed length of 72″, and a maximum bed width of 42″. We can produce parts with thicknesses ranging from 0.005″ to 0.25″ with close or precision tolerances.
To learn more about Arcade’s metal stamping service, please refer to the table below or contact us today.
Precision Metal Stamping Capabilities
| Production Method | - Compound/Secondary Tooling
- Progressive Tooling
|
| Production Capabilities | - Large Sheet Metal Pieces
- Medium Size Parts
- Miniature/Small Parts
|
| Materials | - Aluminum
- Brass
- Bronze
- Cold Rolled Steel
- Copper
- Galvanized
- Galvannealed
- Hot Rolled Steel
- Kovar
- Silver
- Stainless Steel
|
| Specifications | - Press Range: 45 to 200 t
- Maximum Press Bed Length: 72 in
- Maximum Press Bed Width: 42 in
- Part Thickness: 0.005 to 0.250 in
- Tolerance: Close, Precision
|
| Additional Services Provided | - Engineering Assistance
- Computer Numerical Control (CNC) Machining
- Drilling
- Tapping
- Plating
- Painting
- Heat Treating
- Welding
- Riveting
- Deburring
- Secondary Press Work
- Sub and Complete Assemblies
- In-House Tooling
- Specialty Packaging
|
| Quality | - Electronic Data Interchange (EDI)
- Ram Optical Measuring System
- Statistical Process Control (SPC)
|
| Inspection | - 1st Piece Inspection
- Final
- In-Process
|
| Documentation | |
| Production Volume | - Prototypes
- Short Run
- Volume Production
|
| Additional Information | Industry Focus- Appliance
- Automotive
- Computer/Data Processing
- Dental
- Electrical
- Electronics
- Energy/Utilities
- Furniture
- Government/Defense
- Hardware
- Heating & Cooling
- Home Furnishings
- Instrumentation Systems
- Control Systems
- Machinery
- Marine
- Medical
- Office Equipment
- Optical
- Printing
- Sporting Goods
- Telecommunications
- Toy & Games
- Transportation Equipment
|
| Industry Standards | - ASTM (American Society for Testing Materials)
- CSA (Canadian Standards Association)/cUL (Underwriters Laboratories of Canada)
- ISO 9001: 2015 (International Standard Organization)
- Mil-Spec (Military Specification)
- RoHS Compliant (Restriction of Hazardous Substances)
- UL (Underwriters Laboratories)
- WEEE (Waste Electrical and Electronic Equipment Directive)
|
| File Formats | - SolidWorks (SLDPRT, SLDDRW, SLDDRT)
|
